Outer Cooling Jacket and Water Inlet/Outlet in CO₂ Laser Tube
The Outer Cooling Jacket with its Water Inlet and Outlet is one of the most critical components of a CO₂ laser tube. Since CO₂ lasers work by exciting a gas mixture with high voltage, a significant amount of heat is generated inside the discharge tube. If this heat is not controlled, it can cause serious problems like tube overheating, gas instability, glass cracks, and even complete tube failure. To prevent this, CO₂ laser tubes are designed with a water-cooling system, where the outer cooling jacket plays the most important role.
1. What is the Outer Cooling Jacket?

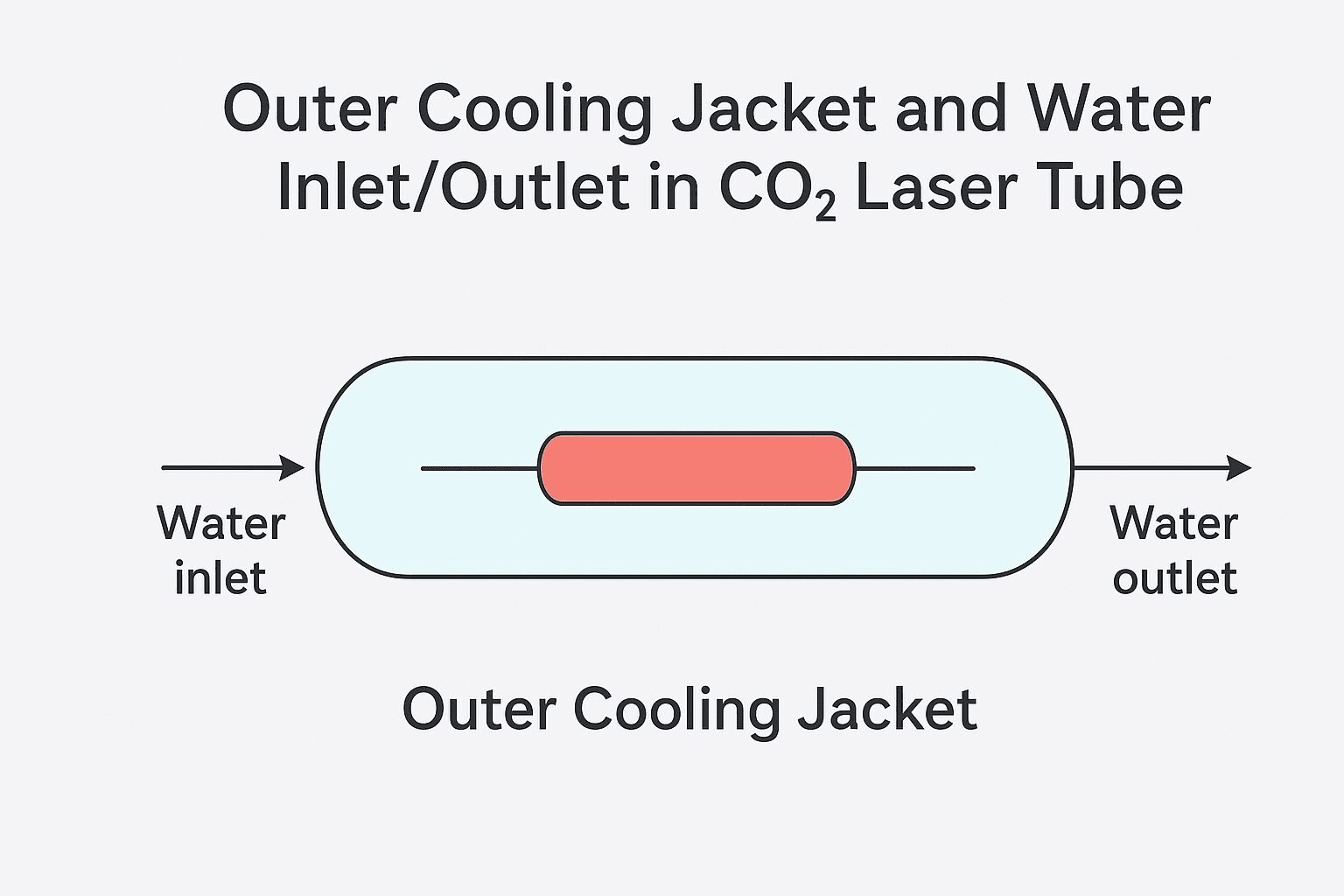

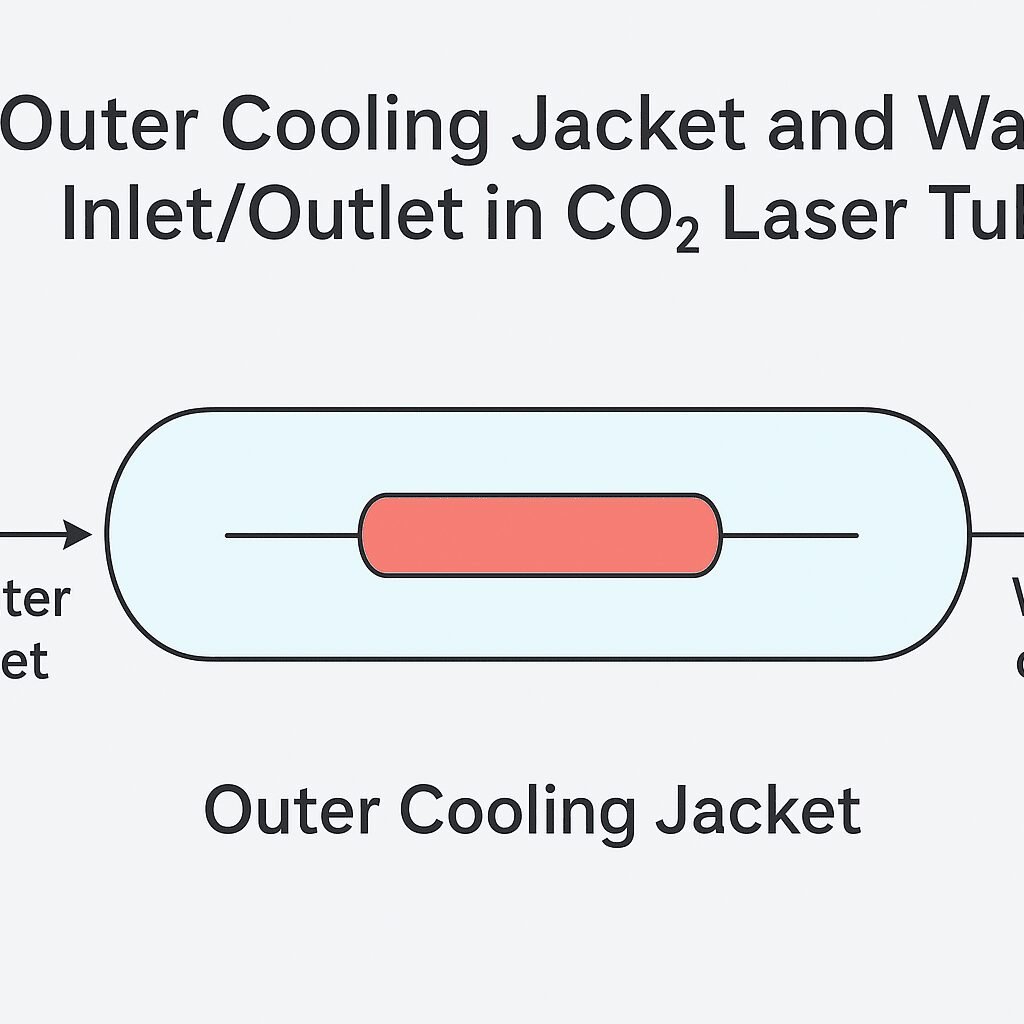

The outer cooling jacket is a hollow glass layer surrounding the discharge tube. It creates a channel for circulating water around the tube to keep it at a stable temperature. The cooling jacket is usually cylindrical and concentric with the discharge tube, ensuring that the water flows evenly around the hot area.
Key Features of Outer Cooling Jacket
- Material: Made from high-strength glass (often borosilicate or quartz) to withstand continuous temperature fluctuations.
- Design: A fully sealed tube with a water channel around the discharge tube.
- Functionality: Works as a thermal shield, ensuring that the inner discharge tube does not overheat.
- Durability: Built to last for thousands of operating hours, provided water circulation is maintained properly.
2. What is the Water Inlet?
The Water Inlet is the entry point where cool water enters the outer cooling jacket. It is generally placed at one end of the laser tube and connected to a water chiller or water pump.
Functions of Water Inlet
- Supplies Fresh Cool Water – Introduces water at the right temperature (15°C to 25°C is ideal).
- Begins Cooling Cycle – The cooling jacket fills with water through this port.
- Prevents Overheating – By constantly feeding cooler water, it ensures that the heat from the discharge tube is absorbed efficiently.
If the water inlet is blocked or water flow is insufficient, the laser tube can quickly overheat, leading to cracks in the glass and gas leakage.
3. What is the Water Outlet?
The Water Outlet is the exit point where heated water leaves the cooling jacket after absorbing the heat from the discharge tube. It is usually located at the opposite end of the water inlet, ensuring a full circulation path.
Functions of Water Outlet
- Removes Heated Water – Ensures that hot water is expelled and replaced with cooler water.
- Maintains Continuous Flow – Prevents stagnant water which could cause uneven cooling and stress cracks.
- Supports Recirculation – Sends water back to the chiller or cooling tank where it is cooled again before re-entering the system.
If the outlet is blocked or restricted, pressure builds up, potentially damaging the glass structure.
4. How the Cooling System Works (Step by Step)
- The water inlet allows cool water from a pump or chiller to enter the cooling jacket.
- The water flows around the discharge tube, absorbing heat generated during gas excitation.
- As the water absorbs heat, its temperature rises.
- The water outlet allows this heated water to leave the tube and flow back into the cooling system.
- The chiller or cooling tank reduces the water temperature before it is re-circulated.
- This cycle continues throughout laser operation, keeping the tube temperature stable.
5. Importance of Proper Cooling
The outer cooling jacket with its inlet and outlet is not just an accessory but a lifeline for the laser tube.
Benefits:
Protects Against Overheating: Without cooling, the tube could overheat in minutes.
Extends Tube Lifespan: A properly cooled CO₂ laser tube can last thousands of hours.
Improves Beam Quality: Stable temperatures prevent fluctuations in laser output.
Prevents Tube Cracking: Thermal stress is minimized with constant water circulation.
Enables Higher Power: With good cooling, the tube can operate at full rated power safely.
Problems Without Proper Cooling:
- Cracks in the glass tube.
- Reduced laser power and unstable beam.
- Gas pressure imbalance.
- Complete failure of the CO₂ laser tube.
5. Importance of Proper Cooling
- Water Temperature: Keep between 15°C – 25°C.
- Flow Rate: 2–4 liters per minute ias recommended depending on tube size.
- Water Quality: Use clean distilled water to prevent scale deposits.
- Monitoring: Use temperature sensors and flow detectors for safety.
Conclusion
The Outer Cooling Jacket with Water Inlet and Outlet is one of the most crucial safety and performance systems of a CO₂ laser tube. It acts like the circulatory system of the laser, constantly moving cool water in and hot water out to keep the discharge tube at the right temperature. Without it, the laser tube’s lifespan would be extremely short, and performance would be inconsistent.
