Cathode Terminal in CO₂ Laser Tube
Introduction
A CO₂ laser tube is the heart of any CO₂ laser cutting or engraving machine. It is responsible for generating the infrared laser beam used to cut, engrave, or mark materials. The laser tube operates with the help of two main electrical components: the anode terminal (positive electrode) and the cathode terminal (negative electrode). While the anode initiates the electric discharge, the cathode terminal plays an equally important role in ensuring that the laser process is stable and efficient.
This article will explain everything about the cathode terminal — what it is, how it works, its features, functions, and why it is essential for the performance of CO₂ laser machines.

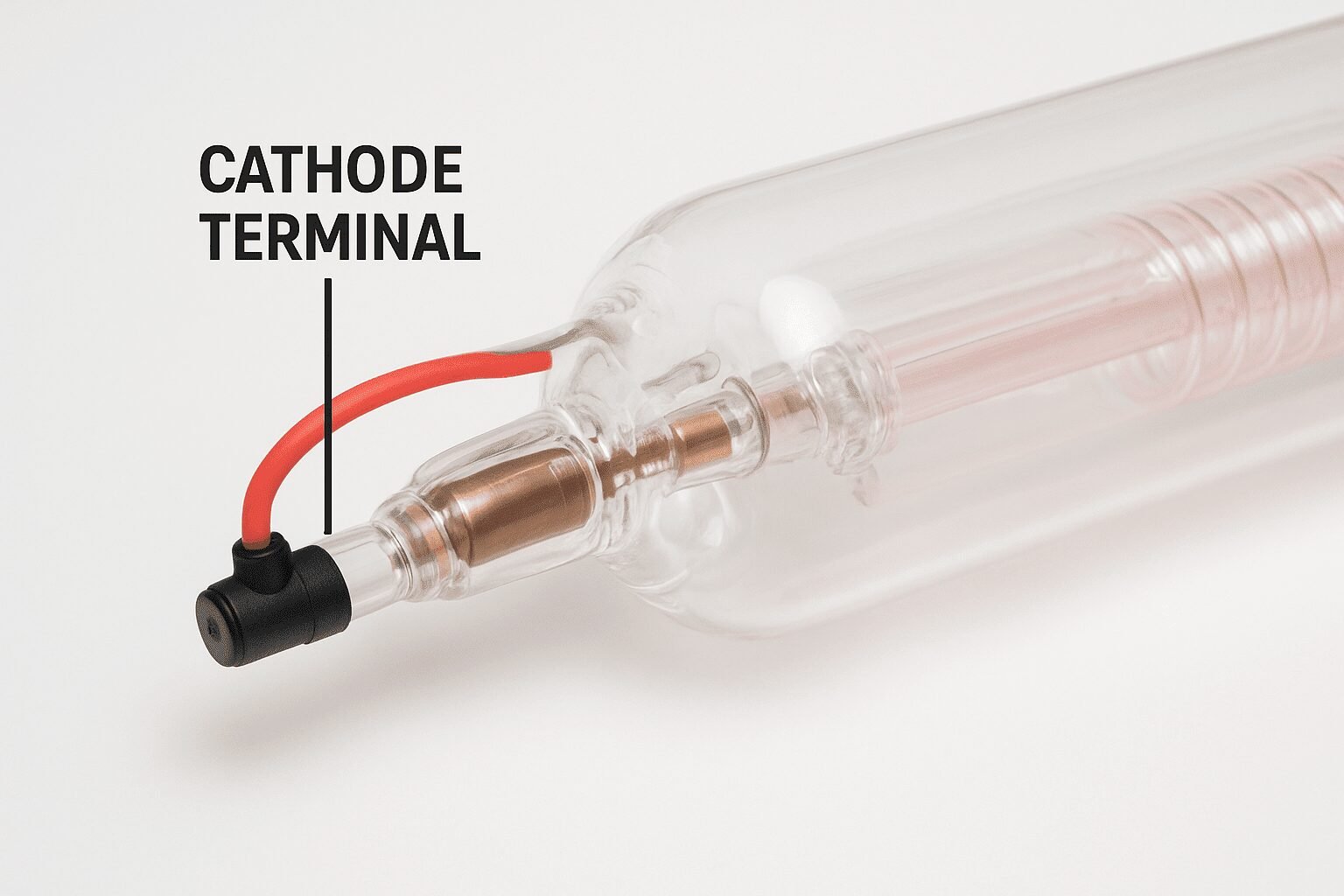

What is the Cathode Terminal in a CO₂ Laser Tube?
The cathode terminal is the negative electrode of the CO₂ laser tube. It completes the electrical circuit by receiving the flow of electrons from the discharge inside the tube. Without the cathode terminal, the laser tube cannot generate a continuous discharge, which means no laser beam can be produced.
It is usually located at the opposite end of the laser tube from the anode terminal. The cathode terminal is designed to handle electron bombardment and heat dissipation, ensuring the system remains stable during long working hours.
Where is the Cathode Terminal Used?
The cathode terminal is present in all CO₂ laser tubes, regardless of size or power rating. It is an essential part of:
- Laser Cutting Machines – Used in industries such as furniture, signage, textiles, packaging, and decoration.
- Laser Engraving Machines – For engraving on wood, acrylic, glass, leather, and coated metals.
- DIY and Small Laser Machines – Hobbyists and small businesses also rely on cathode terminals for efficient operation.
- High-Power Industrial Lasers – Large-scale production machines use stronger cathodes for continuous operation.
Features of the Cathode Terminal
The cathode terminal is designed with special features that make it durable and reliable:
- High Durability – Made from robust materials like metal alloys to withstand continuous electron bombardment.
- Heat Resistance – Handles the heat produced during discharge and dissipates it effectively.
- Stable Performance – Ensures smooth electrical discharge for consistent laser output.
- Long Lifespan – Engineered to last through thousands of operating hours.
- Protective Housing – Often covered with insulating materials for safety.
Main Work of the Cathode Terminal
The cathode terminal has several critical roles in the CO₂ laser tube:
- Completes the Circuit – Allows current to flow between the anode and cathode.
- Absorbs Electrons – Receives the electrons that flow through the discharge tube.
- Maintains Stability – Prevents fluctuations in discharge, ensuring smooth laser operation.
- Supports Cooling – Helps in heat dissipation so that the laser tube does not overheat.
In simple words:
The anode terminal supplies energy, and the cathode terminal completes the loop, making sure the energy is properly converted into a laser beam.
How Does the Cathode Terminal Work?
The working process of the cathode terminal can be explained step by step:
- Voltage Applied – The power supply applies a high voltage between the anode and cathode.
- Electron Flow – Electrons move through the gas mixture towards the anode, while the cathode serves as the receiving electrode.
- Gas Excitation – The collisions of electrons with CO₂, nitrogen, and helium molecules excite them into higher energy states.
- Photon Emission – The excited CO₂ molecules release energy as photons (infrared light).
- Laser Output – The photons are amplified and aligned by mirrors, resulting in a powerful CO₂ laser beam.
The cathode ensures that this process continues without interruption, providing a stable laser output.
Importance of the Cathode Terminal in a Laser Tube
The cathode terminal is vital for several reasons:
- Ensures continuous electrical discharge for stable operation.
- Prevents power fluctuations that could damage the laser tube.
- Supports longer tube life by efficiently handling electron bombardment.
- Maintains the power output and beam quality of the laser machine.
- Works as a safety mechanism by controlling and absorbing excess electrical energy.
If the cathode terminal fails, the laser tube will stop working completely, as the electrical circuit cannot be completed.
FAQs About Cathode Terminal in CO₂ Laser Tube
Q1: What is the role of the cathode terminal in a CO₂ laser tube?
The cathode terminal serves as the negative electrode, receiving electrons and completing the electrical circuit for stable laser generation.
Q2: Where is the cathode terminal located?
It is located at one end of the CO₂ laser tube, opposite the anode terminal.
Q3: What happens if the cathode terminal fails?
If the cathode terminal is damaged or disconnected, the laser tube cannot generate a beam because the electrical circuit remains incomplete.
Q4: Does the cathode terminal need maintenance?
Yes, it should be kept clean, dry, and well-insulated. Overheating or dust accumulation can reduce efficiency.
Q5: How is the cathode different from the anode?
The anode terminal supplies high-voltage electricity, while the cathode terminal receives electrons and ensures circuit completion. Both are equally essential for laser operation.
